Catalog of goods
Room characteristics:
Room length: 0
2 м
30 м
Room width: 0
2 м
10 м
Room height: 0
2 м
20 м
Luminaire orientation:
Arrangement of lamps:
Required illumination:
лк
Additionally
Hide
arrow down

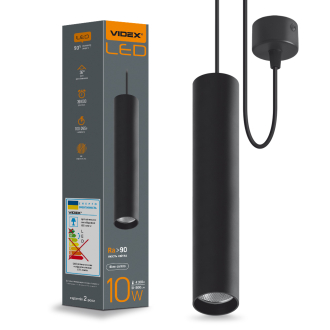

LED pendant lamp VIDEX 10W 4100K black
calculator lamp example
Article
VL-SP-10034B
Category
Wall and ceiling lights
Power
10 W
Light flow
800 Lm
Correlated color temperature
4100К (біле світло)
Light quality
Ra > 90
Voltage
AC 100-265 V
Frequency
50/60 Hz
Energy efficiency
80 Lm/W
Energy class
А+
Beam angle
36°
Turn-on time up to full light flux
Миттєвий старт (<1 сек)
Lifetime (L70B50)
30000г
Protection class, IP
20
Power factor
0.5
Maximum amperage
90mA
Рівномірність кольору (SDCM)
<6
Пікова сила світла
2601 кд
Working temperature
-25°C ~ + 50°С
Mounting type
Підвісний
Materials
Алюминий
Sizes
60mm х 300mm
Colour
Чорний
Weight
360g
Warranty period
2 роки
Quantity in pack
1шт
Quantity in carton
20pcs
Barcode
4820246480772
732
UAH
Calculation results:
Parameter
Value
Number of lamps (pcs)
-
Average illuminance (lux)
-
Min. illumination (lux)
-
Max. illumination (lux)
-
Uniformity (min / av)
-
Extra equal (min / max)
-
Use coef.
-
