Ceiling plan

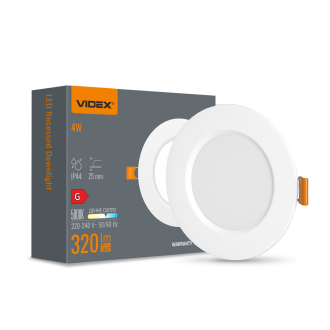

LED Luminaire Back recessed round VIDEX 4W 5000K
Features
Article
VL-DLBR-045
Category
Downlight
Power
4 W
Luminous flux
320 Lm
Correlated color temperature
5000K (daylight)
Color rendering index (CRI)
Ra > 80
Form factor
Round
Voltage
AC 220-240 V
Frequency
50/60 Hz
Luminous Efficacy
80 Lm/W
Energy class
А+
Energy class (EU)
G
Beam angle
140°
Cut-out diameter
77-82 mm
Warm-up time to 100% of full luminous flux
Миттєвий старт (<1 сек)
Dimmable
Не підтримує
Lifetime (L70B50)
30000h
ON/OFF cycles
20000
Protection class, IP
44
Displacement factor (cos φ1)
0.6
Maximum amperage
30mA
The lumen maintenance factor
≥94.8%
Colour consistency in MacAdam ellipses (SDCM)
<6
Peak luminous intensity
77 cd
Operating temperature range
-20°C ~ + 40°С
Mounting type
Recessed
Materials
Refractory (up to 650 ° C) polypropylene V2 + polystyrene
Sizes
98mm х 25mm
Colour
White
Weight
49g
Warranty period
2 years
Quantity in pack
1шт
Quantity in carton
40pcs
Barcode
82
UAH
Calculation results:
Parameter
Value
Number of lamps (pcs)
-
Average illuminance (lux)
-
Min. illumination (lux)
-
Max. illumination (lux)
-
Uniformity (min / av)
-
Extra equal (min / max)
-
Use coef.
-
