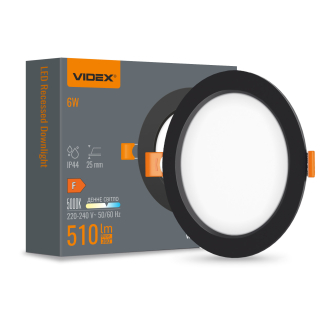

LED Luminaire Back recessed round VIDEX 6W 5000K Black
Features
Article
VL-DLBR-065B
Category
Downlight
Power
6W
Luminous flux
510 Lm
Correlated color temperature
5000K (daylight)
Color rendering index (CRI)
Ra > 80
Form factor
Round
Voltage
AC 220-240 V
Frequency
50/60 Hz
Luminous Efficacy
85 Lm/W
Energy class
А+
Energy class (EU)
F
Beam angle
140°
Cut-out diameter
95-100 mm
Warm-up time to 100% of full luminous flux
Миттєвий старт (<1 сек)
Dimmable
Не підтримує
Lifetime (L70B50)
30000h
ON/OFF cycles
20000
Protection class, IP
44
Displacement factor (cos φ1)
0.6
Maximum amperage
45mA
The lumen maintenance factor
≥94.8%
Colour consistency in MacAdam ellipses (SDCM)
<6
Peak luminous intensity
123 cd
Operating temperature range
-20°C ~ + 40°С
Mounting type
Recessed
Materials
Refractory (up to 650 ° C) polypropylene V2 + polystyrene
Sizes
118mm х 25mm
Colour
Black
Weight
65g
Warranty period
2 years
Quantity in pack
1шт
Quantity in carton
40pcs
Barcode
114
