Ceiling plan

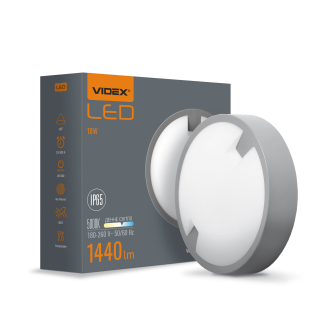

LED round lamp IP65 VIDEX 18W 5000K
Features
Article
VL-BH12R-185
Category
Waterproof lights
Power
18 W
Luminous flux
1440 Lm
Correlated color temperature
5000K (daylight)
Color rendering index (CRI)
Ra > 80
Form factor
Round
Voltage
AC 180-260 V
Frequency
50/60 Hz
Luminous Efficacy
80 Lm/W
Energy class
А+
Energy class (EU)
F
Beam angle
120°
Warm-up time to 100% of full luminous flux
Миттєвий старт (<1 сек)
Dimmable
Не підтримує
Lifetime (L70B50)
30000h
Impact protection, IK
07
ON/OFF cycles
20000
Protection class, IP
65
Displacement factor (cos φ1)
0.7
Maximum amperage
156mA
The lumen maintenance factor
≥96%
Colour consistency in MacAdam ellipses (SDCM)
<6
Peak luminous intensity
458 cd
Operating temperature range
-20°C ~ + 40°С
Mounting type
Накладний
Materials
ABS-polycarbonate
Sizes
D220mm-H65mm
Colour
Gray
Weight
440g
Warranty period
2 years
Quantity in pack
1шт
Quantity in carton
16pcs
Barcode
537
UAH
Calculation results:
Parameter
Value
Number of lamps (pcs)
-
Average illuminance (lux)
-
Min. illumination (lux)
-
Max. illumination (lux)
-
Uniformity (min / av)
-
Extra equal (min / max)
-
Use coef.
-
